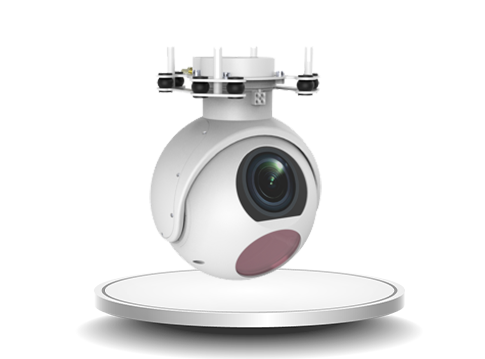

【 Overview 】 The multifunctional optoelectronic pod is an observation and reconnaissance equipment used for aircraft, helicopters, ships and other vehicles, with various functions, including thermal imaging, infrared imaging, night vision imaging, high-definition photography, video shooting, laser aiming, etc. The design structure of this pod is reasonable and has excellent performance, which plays an important role.

The multifunctional photoelectric pod is an observation and reconnaissance equipment used for aircraft, helicopters, ships and other vehicles, with various functions, including thermal imaging, infrared imaging, night vision imaging, high-definition photography, video shooting, laser aiming, and so on. The design structure of this pod is reasonable and has excellent performance, which plays an important role. This article will provide a detailed introduction to the structure, principle, and maintenance methods of the multifunctional optoelectronic pod.

1、 Structure of multifunctional optoelectronic pod

The multifunctional optoelectronic pod mainly consists of the following parts: architecture, optical system, electronic control system, self stabilizing platform system, and connection system.

1. Architecture: The architecture of the multifunctional optoelectronic pod is the main load-bearing structure of the entire pod, consisting of a protective cover, shell, base, support frame, and fixing screws. The protective cover and casing can effectively protect the equipment and optical lens, prevent damage from external factors, and ensure the accuracy of the optical system. The base of the pod adopts a spherical interface design, which can rotate flexibly and quickly fix the pod to the body.

2. Optical system: The optical system of the multifunctional optoelectronic pod includes optical lenses, filters, beam splitters, image planes, and optical adjustment systems. The optical lens is an important factor affecting the imaging quality of the pod. It is made of high-precision optical lenses and can achieve ultra long distance imaging, ensuring the instantaneous responsiveness and effectiveness of the equipment. A beam splitter is an efficient system where multiple optical devices share imaging equipment, which can decompose and synthesize various spectral bands;

3. Electronic control system: The electronic control system of the multi-functional photoelectric pod includes components such as sensors, signal processors, digital signal processors, data transmission, etc. It can coordinate the actions of various components and monitor them to ensure accurate and efficient operation of the equipment, and transmit images to the operator. The internal structure of the pod adopts a modular design, which can be quickly replaced and maintained, greatly improving the reliability and maintainability of the equipment.

4. Self stabilizing platform system: The self stabilizing platform system of the multifunctional optoelectronic pod adopts advanced gyroscope stabilization technology, which can maintain the stability and accuracy of the equipment during high-speed aircraft movement. At the same time, the self stabilizing platform can also automatically control the posture of the equipment, ensuring that the pod can always maintain the correct angle.

5. Connection system: The connection system of the multi-functional photoelectric pod includes cables, communication equipment, high-power power supply equipment, etc., which can complete the connection and data transmission between the equipment and the body.

2、 The working principle of multifunctional photoelectric pod

The working principle of a multifunctional optoelectronic pod mainly relies on the synergistic effect between various components to achieve various data acquisition, imaging and recording functions. The specific principle is as follows:

1. Thermal imaging: By utilizing the working principle of sensors, the actual temperature information of the target is converted into image signals to observe and identify heat sources.

2. Infrared imaging: By sensing the infrared radiation signal emitted by the target through an infrared detector, it is converted into an image signal to achieve detection, recognition, and tracking of the target.

3. Night vision imaging: By controlling the intensity of light, dim scenes that cannot be recognized by the human eye are converted into clear black and white images, achieving recognition and tracking of nighttime targets.

4. High definition photography: Captured through an optical system and processed through an electronic control system to record the target photo.

5. Video shooting: Image signals are captured through optical systems, and processed and compressed through electronic control systems to achieve video recording and playback.

6. Laser aiming: Utilizing a specially designed laser to effectively strengthen the target position and cooperate with the aiming guidance of weapon systems such as missiles or machine guns.

3、 Maintenance methods for multifunctional optoelectronic pods

After long-term use of the multifunctional optoelectronic pod, relevant maintenance is required to ensure the service life of the equipment and extend its retirement period. Here are the specific maintenance methods:

1. Daily maintenance: Regularly clean and inspect the equipment, such as disassembling the pod shell, adding grease, disassembling the optical lens for cleaning, etc.

2. Maintenance: According to the maintenance requirements of the equipment manufacturer, regularly carry out maintenance work on the internal integrated components of the system and camera components.
